ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Tubular w/ Triple Rate Spring

Free Ground Shipping to USA (Lower 48)

2 sold in last 8 days
ICON
ICOK53295TS
In stock
Coilovers
$4,989.75 $4,785.89
4 interest-free payments or as low as $1,196.47/mo with Shop Pay 4 installments. Prequalify now
ICON - Coilovers
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed...
$4,785.89
Shop Pay 4 installments
Free Gound Shipping to Continental USA
Description

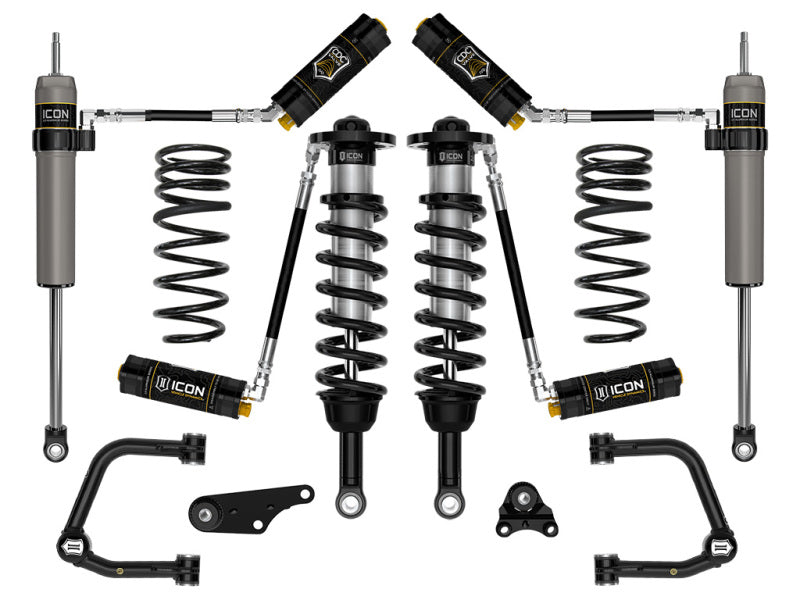

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

Installation Instructions
Installation Instructions
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered front and rear coil springs

This Part Fits:

Year Make Model Submodel
2024 Toyota Tacoma Limited
2024-2025 Toyota Tacoma SR5
2024-2025 Toyota Tacoma TRD Off-Road
2024-2025 Toyota Tacoma TRD Sport
