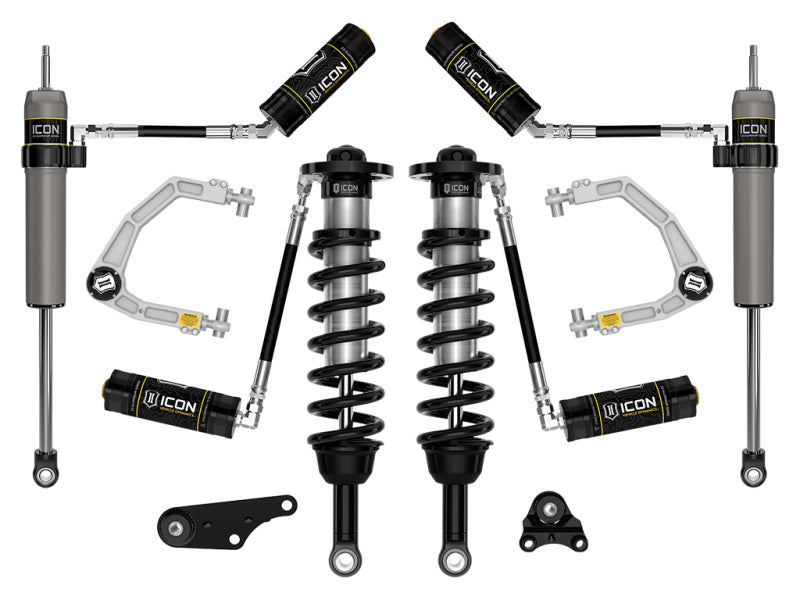

Photo - Primary
Photo - Mounted
Photo - Mounted
Photo - Mounted
Photo - lifestyle view
Photo - lifestyle view
Logo Image
Click to zoom in
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - Mounted
Load image into Gallery viewer, Photo - Mounted
Load image into Gallery viewer, Photo - Mounted
Load image into Gallery viewer, Photo - lifestyle view
Load image into Gallery viewer, Photo - lifestyle view
Load image into Gallery viewer, Logo Image

Have Questions?

702-720-6639 Ask an Experts

  • Guaranteed Fitment¹

    Always the correct part

  • Low Prices

    Low prices every day!

  • In-House Experts

    We know our products

  • Fast Shipping

    Ground to Next Dar Air Shipping

ICON
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 4 Suspension System Billet

Free Ground Shipping to USA (Lower 48)

2 sold in last 8 days
ICON
ICOK53294
In stock
Coilovers
$4,644.80 $4,393.76
4 interest-free payments or as low as $1,098.44/mo with Shop Pay 4 installments. Prequalify now
ICON - Coilovers
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed...
$4,393.76
Shop Pay 4 installments
Free Gound Shipping to Continental USA
Description

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

Installation Instructions
Installation Instructions

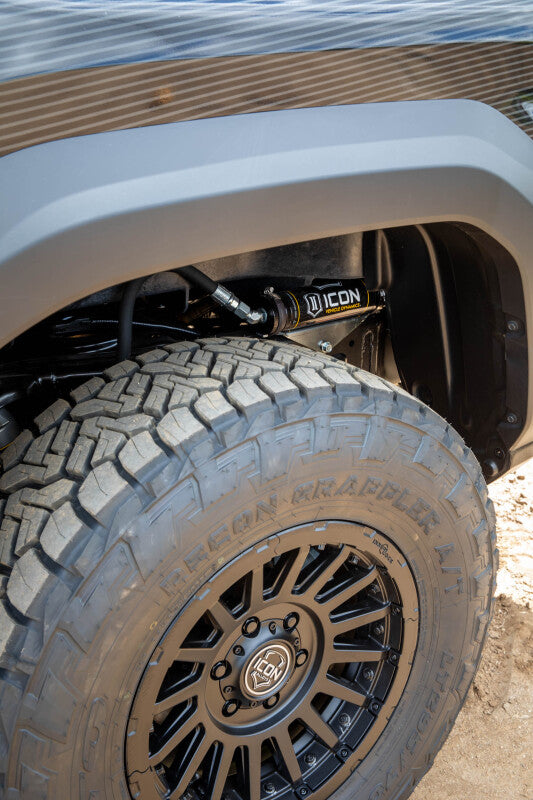

  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

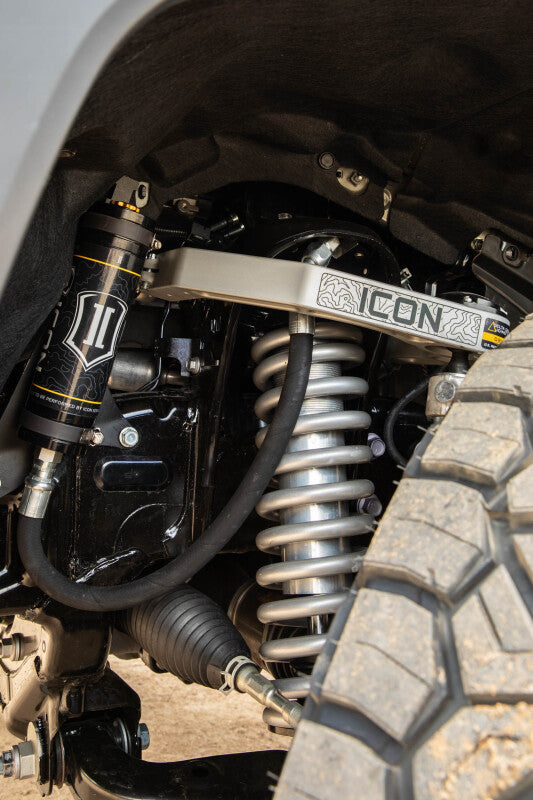

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

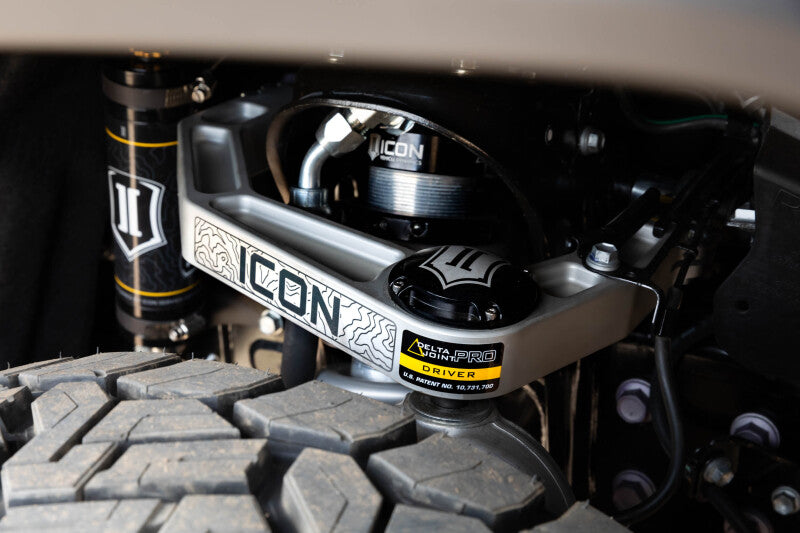

  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered coil springs

This Part Fits:

Year Make Model Submodel
2024 Toyota Tacoma Limited
2024-2025 Toyota Tacoma SR5
2024-2025 Toyota Tacoma TRD Off-Road
2024-2025 Toyota Tacoma TRD Sport
